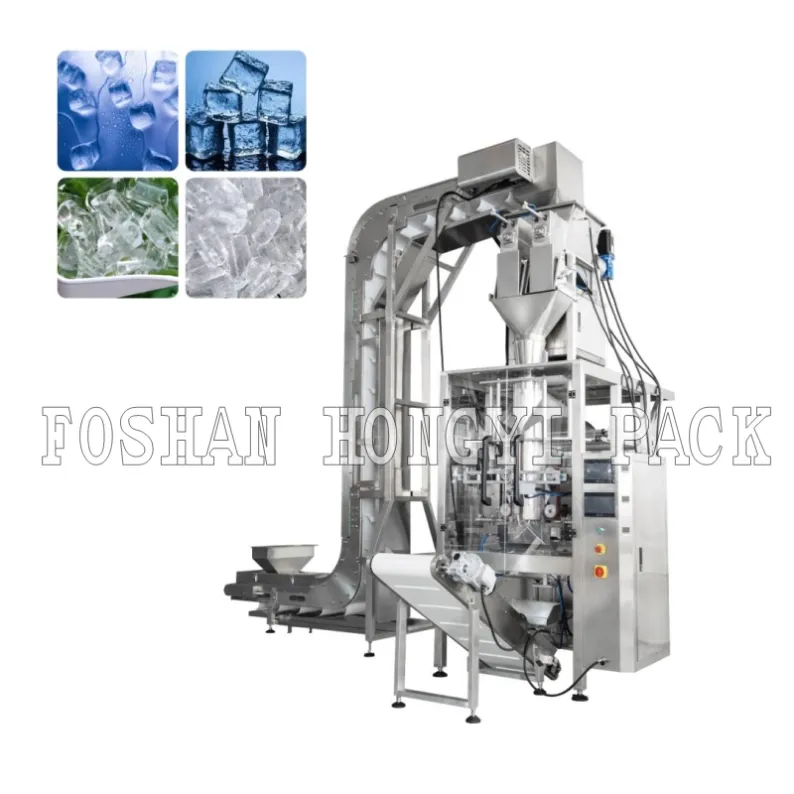

Ice cube Packing System
Automatic ice cube VFFS packing system with thermal insulation anti-melting design, volumetric cup metering, for edible ice, ice pellet, frozen granule automatic bag packaging, cold-resistant stainless steel structure.
Specifications
- Type
- 520 packing machine 520mm
- Bag length
- 80-350mm(L)
- Bag width
- 80-250mm(W)
- Max width of roll film
- 520mm
- Packing speed
- 5-70 bags/min ( empty bag )
- Measuring range
- 150-1000ml
- film thickness
- 0.04-0.08mm
- Gas consumption
- 0.3m³/min
- Power voltage
- 220V
- Power
- 2.2KW
- Dimension
- (L)1320mm×(W)950mm×(H)1360mm
- Deadwight of machine
- 540Kg
This ice cube packing system is a fully automatic VFFS vertical packaging machine specially customized for ice cubes, ice pellets and frozen granular products. It integrates roll film unwinding, bag forming, volumetric cup measuring filling, sealing, date printing and finished bag cutting into one continuous production line.
Equipped with anti-freezing filling structure and thermal insulation design, the machine effectively prevents ice cubes from melting and sticking during packaging. The adjustable volumetric cup filler enables fast switching of different packaging weights without complicated calibration. All parts contacting ice adopt stainless steel with anti-corrosion and low-temperature resistant treatment, suitable for long-term cold workshop environment.
Full servo film pulling and stable sealing mechanism ensure tight bag sealing to avoid air leakage and ice melting. Controlled by PLC and touch screen, operators can easily set bag length, packing speed and sealing temperature, with multiple product recipes stored for quick format change. It supports high-strength composite cold-resistant packaging films to produce pillow bags and gusset bags.
The whole system runs stably at low temperature, with low failure rate and easy daily cleaning and maintenance. Widely used for ice cubes, edible ice, ice balls, frozen fruits and other cold granular materials. Optional configurations include automatic feeding elevator, cold air preservation cover, finished product conveyor and nitrogen flushing device to extend ice storage time. It greatly reduces manual contact and improves packaging efficiency for ice factories and cold storage processing plants.
