Precise VFFS Bearing Pump Auto Weigh Liquid Packing Machine

This industrial large vertical VFFS liquid packing machine supports high-precision packaging for various liquids from water to high-viscosity honey and oil. With full stainless steel build, intelligent sealing and stable high-speed operation, it realizes hygienic, leak-proof and efficient large-bag liquid packaging, suitable for large-scale industrial production.

Description Package Information Inquiry

Model:	320 (with datecoder)	420 (with datecoder)	520(with date coder)	620 (with datecoder)	720 (with datecoder)	820 (with date coder)	1020 (with date coder)
Film width	Max.320mm	Max.420mm	Max.520mm	Max.620mm	Max.720mm	Max.820mm	Max.1020mm
former Range	120-320mm	150-420mm	320-520mm	320-620mm	320-720mm	320-820mm	320-1020mm
Bag Width:	50-150mm	65-200mm	150-250mm	150-300mm	150-350mm	150-400mm	150-500mm
Bag Length:	80-200mm	80-300mm	80-400mm	80-450mm	80-500mm	80-600mm	80-800mm
Film roll Diameter:	Max.320mm	Max.320mm	Max.320	Max.400mm	Max.400mm	Max.400mm	Max.400mm
Packing rate:	5-60bag/min	5-60bag/min	5-60bag/min	5-50bag/min	10-40bag/min	5-35bag /min	5-35bag / min
Measurment range:	150-1000m1	150-1500ml	150-2000m	150-3000m	150-5000mi	150-8000ml	150-10000m
Film thickness:	0.04-0.08mm
Remark	Pneumatic Type
ELECTRIC	220V,50HZ PLC :MITSUBISHI

Application:

This large vertical VFFS liquid packing machine is a fully automatic roll-film forming device for industrial large-capacity liquid packaging. It integrates bag making, filling and sealing in one unit, differing from pre-made pouch and small piston filling machines. It stably processes liquids of diverse viscosities, ideal for mass production in food, daily chemical and industrial industries.

Features：

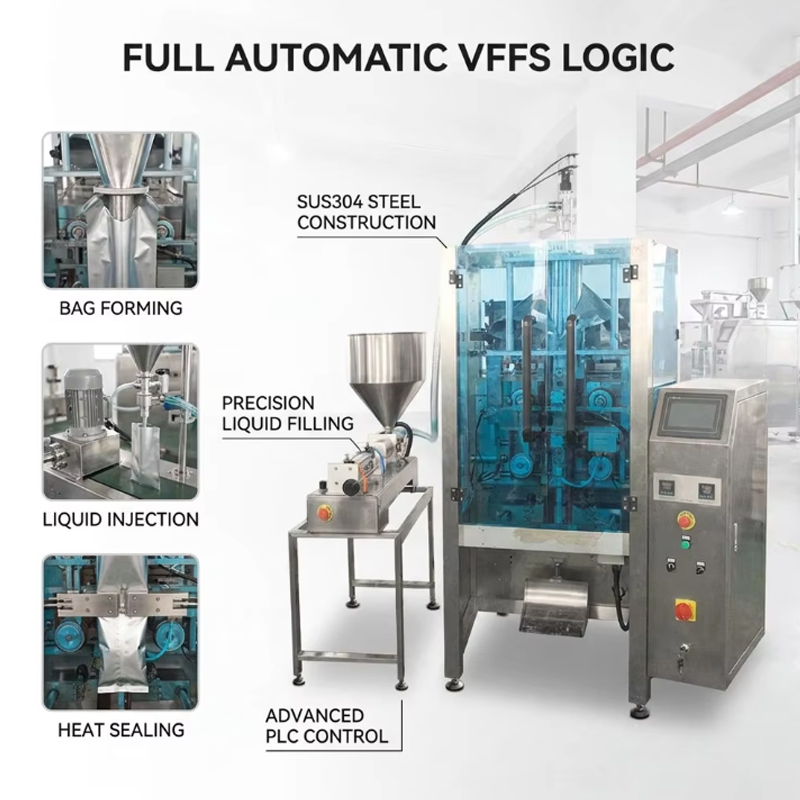

1、Full-Automatic VFFS Integration: All-in-one automatic bag making, filling, sealing and output, greatly reducing manual intervention and boosting overall efficiency.

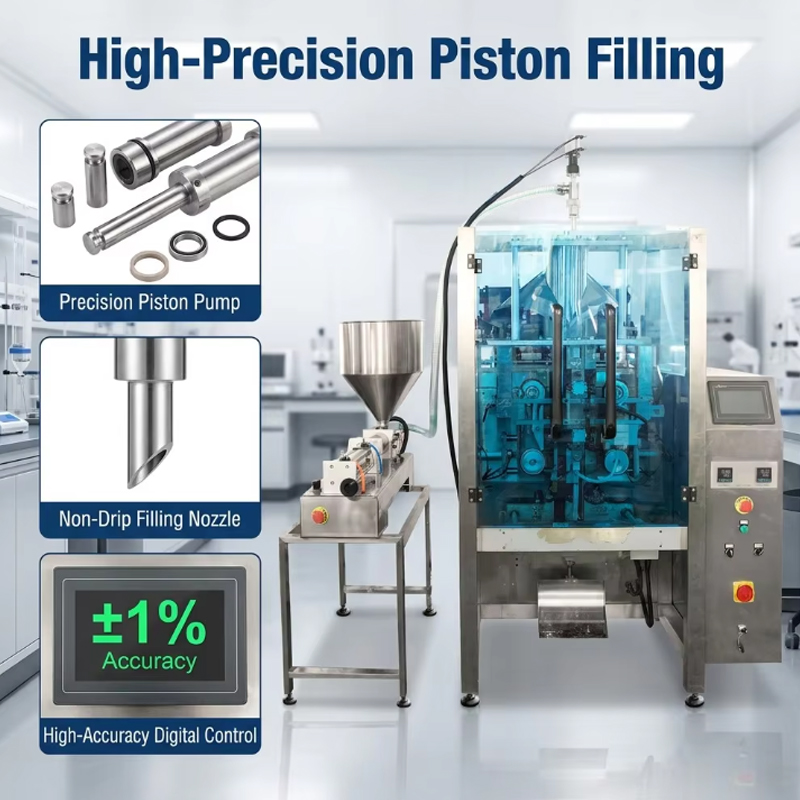

2、High-Precision Piston Filling: Professional piston pump system achieves ±1% filling accuracy, effectively eliminating liquid dripping and material waste.

3、Multi-Viscosity Liquid Compatibility: Versatile filling design adapts freely to water, milk, oil, honey and various viscous liquids with stable filling performance.

4、Industrial Large-Capacity Packaging: Customized structure exclusive for 500ml–5kg large bags, perfectly meeting industrial bulk packaging demands.

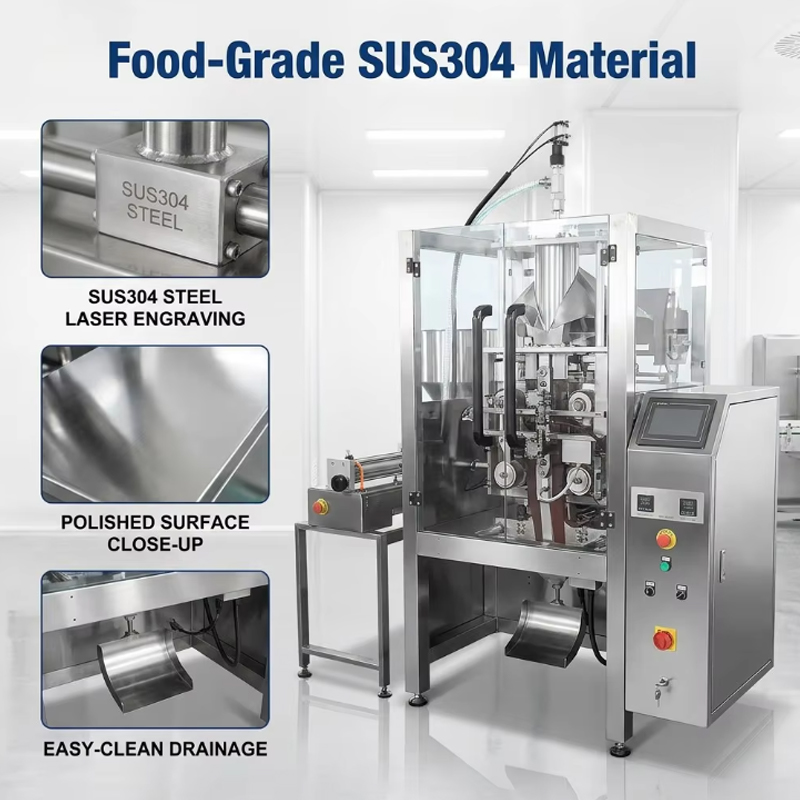

5、Full SUS304 Food-Grade Build: Whole machine adopts stainless steel structure, ensuring high hygiene standard, corrosion resistance and easy daily cleaning.

6、Intelligent Leak-Proof Sealing: Precision constant temperature control delivers airtight, wrinkle-free seals, preventing liquid leakage and extending shelf life.

7、Smart PLC Control System: Multilingual touch screen with real-time operation monitoring, supporting parameter preset and one-click specification switching.

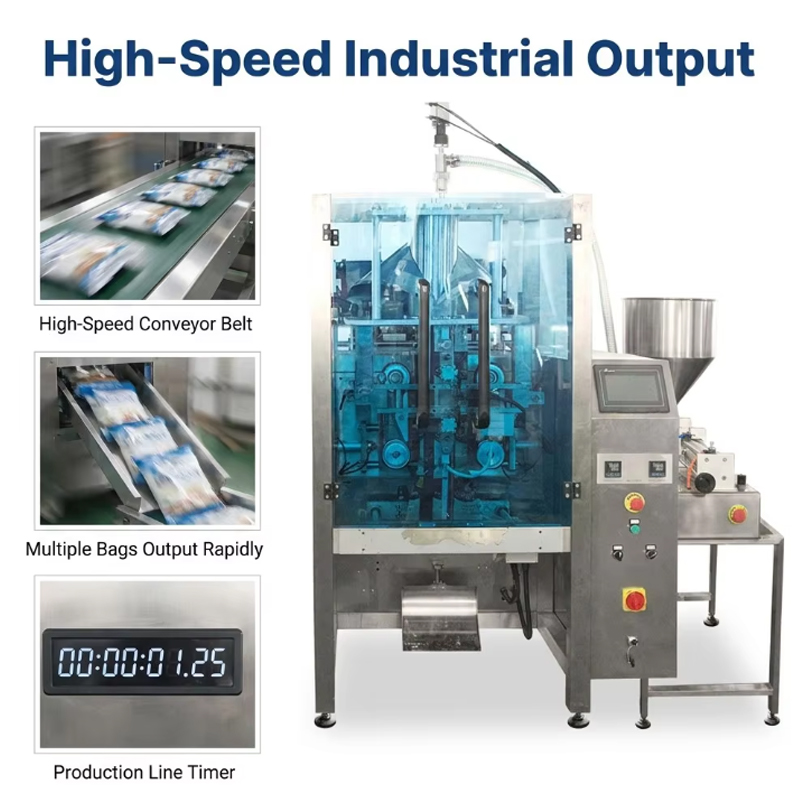

8、Stable High-Speed Operation: Reinforced anti-vibration frame structure supports long-term 24h high-speed industrial operation and extends service life.

9、Flexible Modular Expansion: Supports seamless linkage with coding and feeding equipment to form a complete automated packaging production line.

Core Advantages：

1、Ultra-High Filling Accuracy.

2、Wide Liquid Viscosity Adaptation.

3、Zero Leakage & Sanitary Packaging.

4、High-Speed Mass Production.

5、Long Service Life & Low Maintenance.

6、Flexible Line Integration Capability.
