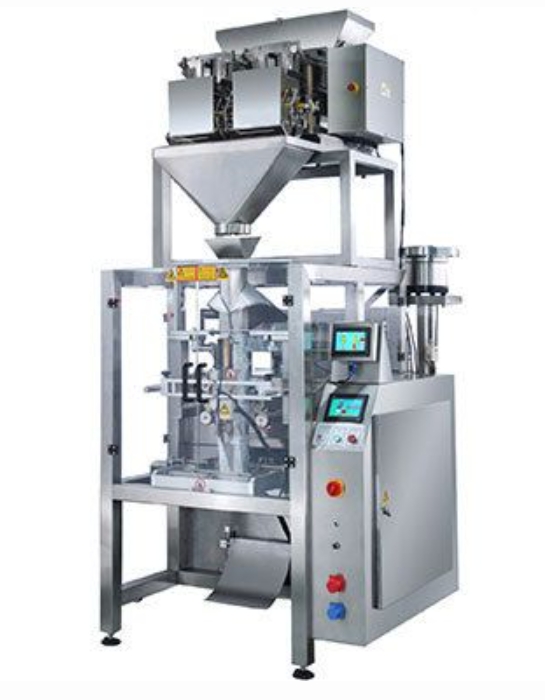

Linear Weigher Granule packing machine
| Model: | 320 (with datecoder) | 420 (with datecoder) | 520(with date coder) | 620 (with datecoder) | 720 (with datecoder) | 820 (with date coder) | 1020 (with date coder) |
| Film width | Max.320mm | Max.420mm | Max.520mm | Max.620mm | Max.720mm | Max.820mm | Max.1020mm |
| former Range | 120-320mm | 150-420mm | 320-520mm | 320-620mm | 320-720mm | 320-820mm | 320-1020mm |
| Bag Width: | 50-150mm | 65-200mm | 150-250mm | 150-300mm | 150-350mm | 150-400mm | 150-500mm |
| Bag Length: | 80-200mm | 80-300mm | 80-400mm | 80-450mm | 80-500mm | 80-600mm | 80-800mm |
| Film roll Diameter: | Max.320mm | Max.320mm | Max.320 | Max.400mm | Max.400mm | Max.400mm | Max.400mm |
| Packing rate: | 5-60bag/min | 5-60bag/min | 5-60bag/min | 5-50bag/min | 10-40bag/min | 5-35bag /min | 5-35bag / min |
| Measurment range: | 150-1000m1 | 150-1500ml | 150-2000m | 150-3000m | 150-5000mi | 150-8000ml | 150-10000m |
| Film thickness: | 0.04-0.08mm | ||||||
| Remark | Pneumatic Type | ||||||
| ELECTRIC | 220V,50HZ PLC :MITSUBISHI | ||||||
Feature :
1. Side film pulling belt , doubel position correction by power adjusting film carrier , which keeps even film conveyance and bag forming .
2. Two independent sealing cylinders , excellent airtight , transparent sealing .
3. Applied with PLC , color touchable screen , high auto , operate & maintenance easily . The machine runs smoothly , low noisy.
Equipped devices:
1. Electronic weighing system ,
2. semi auto feeding device ,
3. spiral type powder measuring device
4. cup measuring device.
5. two head scale, four head scale.
Application
Suitable for packing fragile bulk material with irregular shapes and requiring high measuring accuracy, such as :puffed food, shrimp strip, potato chips, banana chips, apple flakes, crispy rice, biscuit, peanut, cooked seeds, sweets etc.
Feature :
1. The system can finish automatically all processes ,i.e Feeding, measuring, filling and bag making, printing date, product output.
2. The machine structure is compact, rational, stable performance, easy operation and maintenance.
3. The complete set of the machine is featured with fair price, stable performance.
The machine adopts independent mixing system ,is able to mix uniformly the material .
