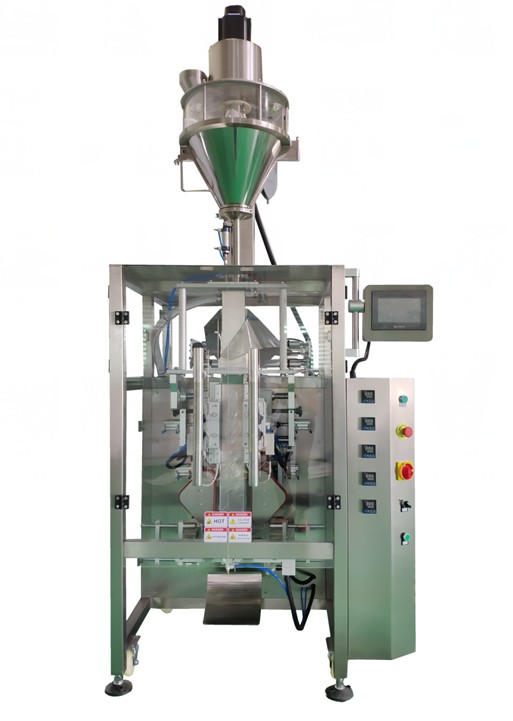

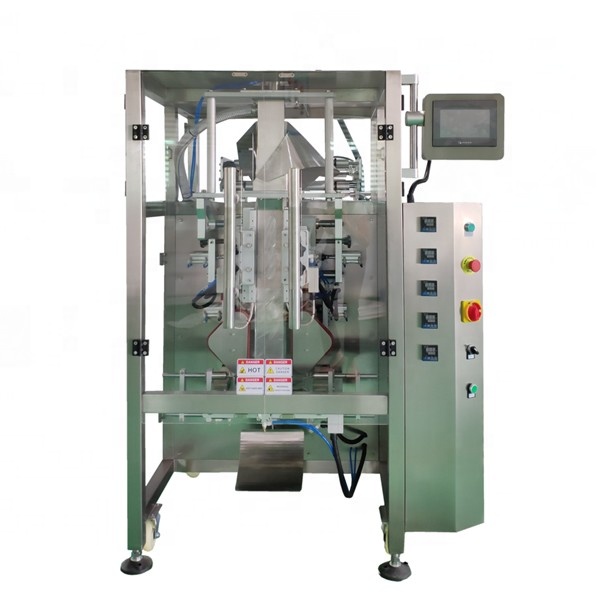

Powder Quad Seal Bag Packing Machine
Type | 520T | 720T |
Bag sealed type | Block bottom -4 sides sealing bag | |
Max. Film width | 520mm | 720mm |
Bag length | Max 400mm | Max 450mm |
Front width | Max 160mm | Max 220mm |
Side width | 40-80mm | 40-110mm |
Width of side seal | 5-10mm | |
Packing speed | Max.50 bag/min (depend on the bag length ) | |
Power | 220V,7.5KW | 220V,7.5KW |
Weight | 750kg | 800kg |
Machine size | (L)1500*(W)1130*(H)1900mm | (L)1700*(W)1360*(H)2250mm |
Feature :
1. Side film pulling belt , doubel position correction by power adjusting film carrier , which keeps even film conveyance and bag forming .
2. Two independent sealing cylinders , excellent airtight , transparent sealing .
3. Applied with PLC , color touchable screen , high auto , operate & maintenance easily . The machine runs smoothly , low noisy.
Equipped devices:
1. Electronic weighing system.
2. semi auto feeding device.
3. spiral type powder measuring device.
4. cup measuring device.
Applicatio
Packing powder such as milk powder , coffee powder, flour powder etc.
