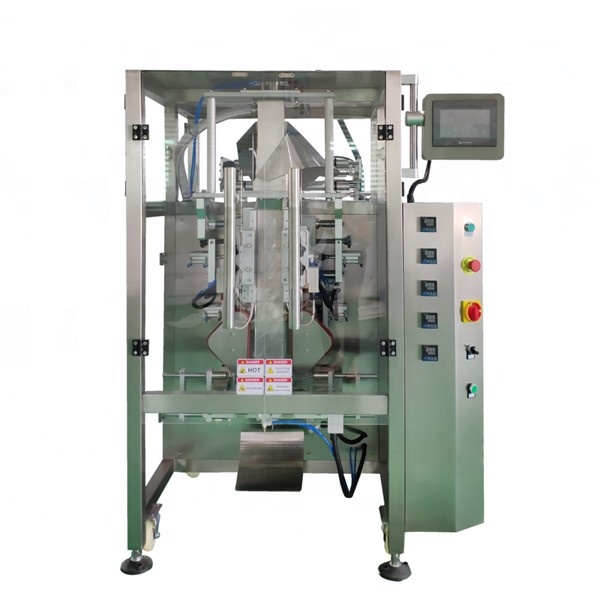

Granule Quad Seal Bag Packing Machine

Granule Quad Seal Bag Packing Machine provides fast heat-sealing for granule, ensuring secure packaging in food, pharma,chemical industries.
Description Package Information Inquiry

Type

520T

720T

Bag sealed type

Block bottom -4 sides sealing bag

Max. Film width

520mm

720mm

Bag length

Max 400mm

Max 450mm

Front width

Max 160mm

Max 220mm

Side width

40-80mm

40-110mm

Width of side seal

5-10mm

Packing speed

Max.50 bag/min (depend on the bag   length )

Power

220V,7.5KW

220V,7.5KW

Weight

750kg

800kg

Machine size

(L)1500*(W)1130*(H)1900mm

(L)1700*(W)1360*(H)2250mm

Feature :

1.    Side film pulling belt , doubel position correction by power adjusting film carrier , which keeps even film conveyance and bag forming .

2.    Two independent sealing cylinders , excellent airtight , transparent sealing .

3.    Applied with PLC , color touchable screen , high auto , operate & maintenance easily . The machine runs smoothly , low noisy.


Equipped devices:

1. Electronic weighing system.

2. semi auto feeding device.

3. spiral type powder measuring device.

4. cup measuring device.

5. two head scale, four head scale.





Application:

Suitable for packing fragile bulk material with irregular shapes and requiring high measuring accuracy, such as :puffed food, shrimp strip, potato chips, banana chips, apple flakes, crispy rice, biscuit, peanut, cooked seeds, sweets etc.
