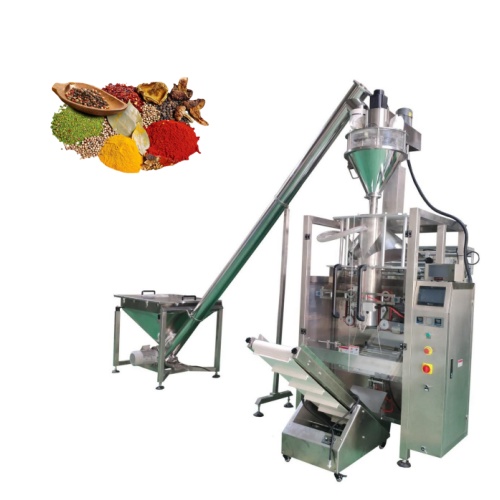

Powder Packing Machinery
| Model: | 320 (with datecoder) | 420 (with datecoder) | 520(with date coder) | 620 (with datecoder) | 720 (with datecoder) | 820 (with date coder) | 1020 (with date coder) |
| Film width | Max.320mm | Max.420mm | Max.520mm | Max.620mm | Max.720mm | Max.820mm | Max.1020mm |
| former Range | 120-320mm | 150-420mm | 320-520mm | 320-620mm | 320-720mm | 320-820mm | 320-1020mm |
| Bag Width: | 50-150mm | 65-200mm | 150-250mm | 150-300mm | 150-350mm | 150-400mm | 150-500mm |
| Bag Length: | 80-200mm | 80-300mm | 80-400mm | 80-450mm | 80-500mm | 80-600mm | 80-800mm |
| Film roll Diameter: | Max.320mm | Max.320mm | Max.320 | Max.400mm | Max.400mm | Max.400mm | Max.400mm |
| Packing rate: | 5-60bag/min | 5-60bag/min | 5-60bag/min | 5-50bag/min | 10-40bag/min | 5-35bag /min | 5-35bag / min |
| Measurment range: | 150-1000m1 | 150-1500ml | 150-2000m | 150-3000m | 150-5000mi | 150-8000ml | 150-10000m |
| Film thickness: | 0.04-0.08mm | ||||||
| Remark | Pneumatic Type | ||||||
| ELECTRIC | 220V,50HZ PLC :MITSUBISHI | ||||||
1. Side film pulling belt , doubel position correction by power adjusting film carrier , which keeps even film
conveyance and bag forming .
2. Two independent sealing cylinders , excellent airtight , transparent sealing .
3. Applied with PLC , color touchable screen , high auto , operate & maintenance easily . The machine runs smoothly , low noisy.

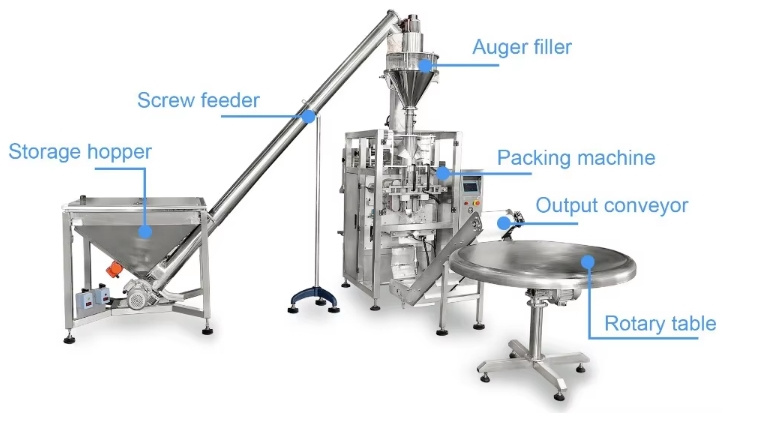

Equipped devices:
1. Electronic weighing system ,
2. semi auto feeding device ,
3. spiral type powder measuring device
4. cup measuring device.
Application
Suitable for packing fragile bulk material with irregular shapes and requiring high measuring accuracy, such as :puffed food, shrimp strip, potato chips, banana chips, apple flakes, crispy rice, biscuit, peanut, cooked seeds, sweets etc.
Specification :
1. English and Chinese screen display ,operation is simple .
2. PLC computer system , function is more stable , adjustment any parameters not need stop machine.
3. It can stock ten dispose , simple to change variety.
4. Sever motor drawing film , position accurately.
5. Temperature independent control system ,precision get to±1℃.
6. Horizontal , vertical temperature control ,suitable for various of mix film , PE film packing material.

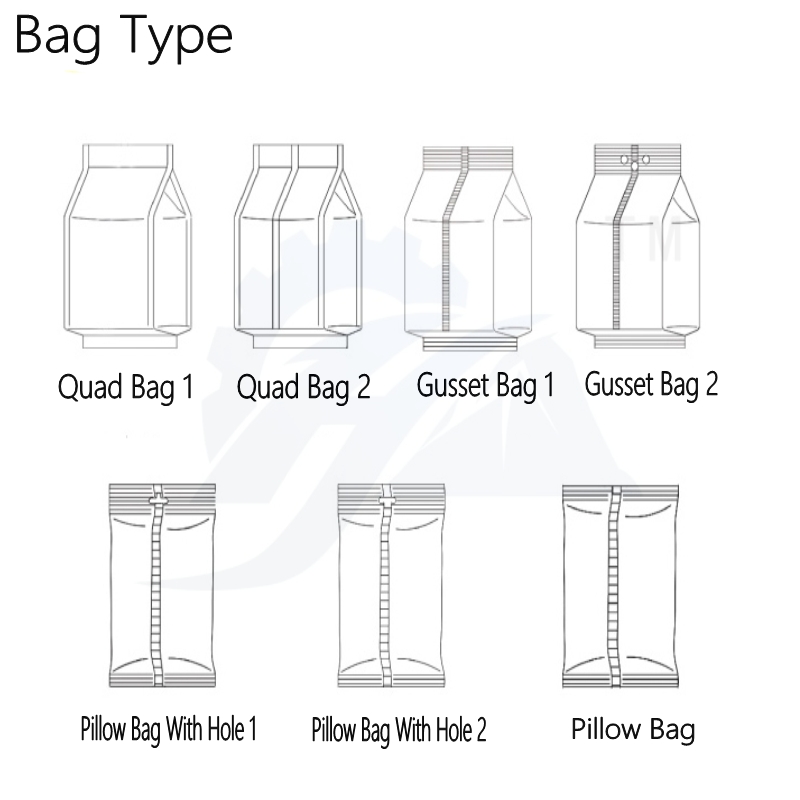

7. Packing type diversification , pillow sealing, standing type ,punching etc.
8. Bag–making , sealing, packing, print date in one operation.
9. Work circumstance quiet, low noise.
Technical characteristics:
1. The machine adopt servo motor control, screw measuring , precision± 1﹪.
2. Adjustment product weight without any tools.
3. Filling head can be changed , suitable for mix film and PE film .
Application
Packing powder such as milk powder , coffee powder, flour powder etc.
