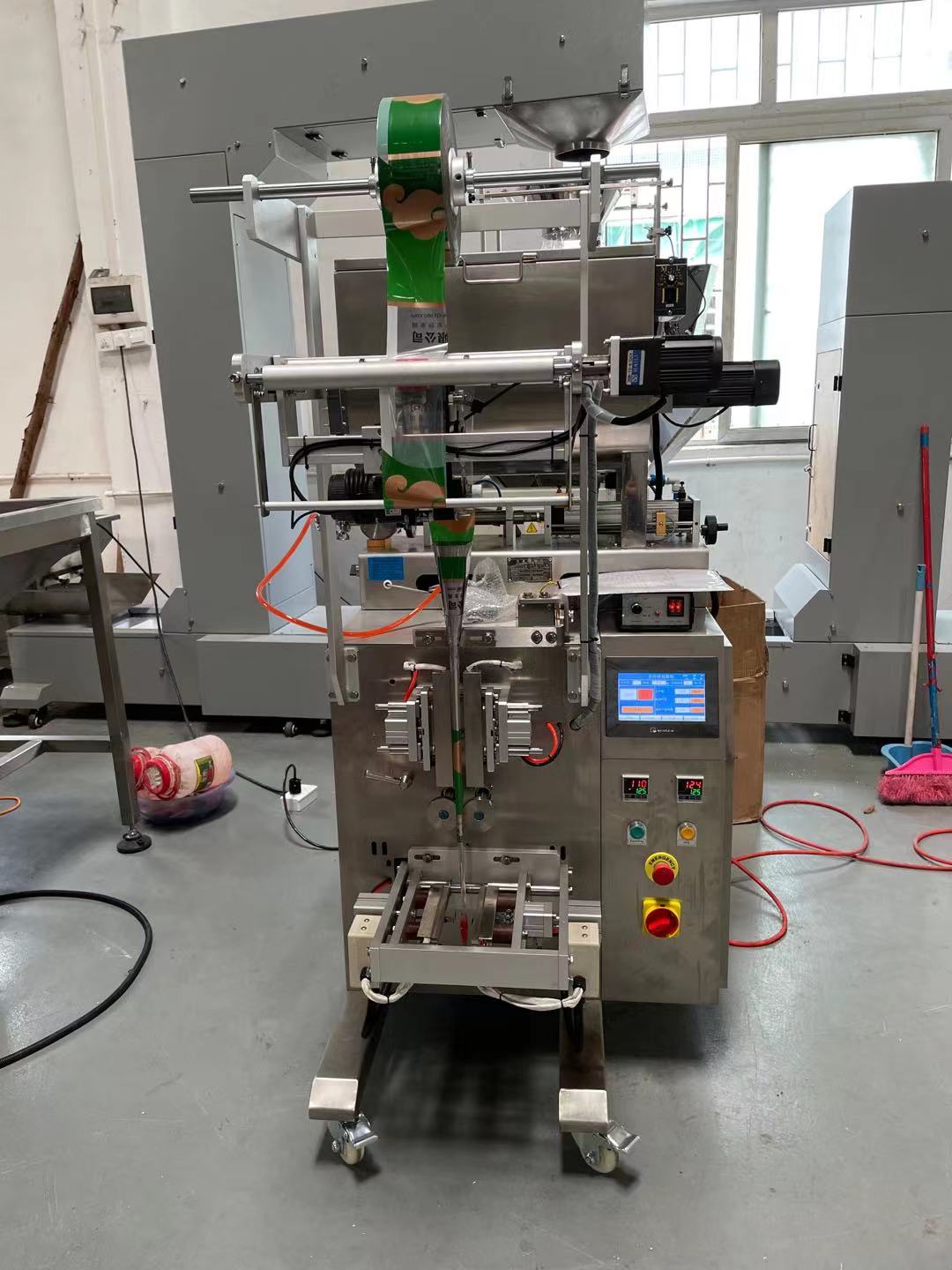

Liquid Sachet Packing Machine

Liquid sachet packing machine auto-seals liquid products in small bags, suitable for food, beverage and pharmaceutical industries.
Description Package Information Inquiry

Item No:

160L

Measuring range:

50-500ML

Max film width :

320mm

Bag size :

L:30-200mm W:50-150mm

Packing speed :

30-100 bag / min

Power:

220V, 50HZ, 2KW

Sealed bags :

3 sides , 4 sides,back sides

Weight :

350KG

Feature

1.    this machine is featured with compact structure , stable , easy operate , convenient on repairing .

2.    this machine adopts photocell control system , visual and understandable , accurate positioning , nice looking.

3.    this machine can finish automatically all processes , from measuring , filling , bag making,date-printing and finished productions conveyance.


Application

Suitable for packaging shampoo, shower gel , skin lotion , tooth paste , cosmetic , cream , mayonnaise , fruit jam , edible oil , soy sauce , vinegar , ketchup , spaghetti sauce , etc .


Optional Parts

1.SCM and step motor controller

2.Electromagnetic on-off control

3.Linked bags control device

4. Date printer with ribbon coder

5. Conveyor






FEATURES:

1. Chinese and English touch screen display, intuitive and simple operation

2. PLC computer control system, stable operation, can adjust any parameters without stopping the machine

3. Can store ten sets of parameters, making it easier to change varieties

4. Using servo motor to pull the film for more accurate positioning

5. Independent temperature control system, with an accuracy of ± 1 ℃

6. The horizontal and vertical sealing temperatures are independently controlled, which can better apply to various packaging materials such as composite films and PE films

7. Diversified packaging styles, including back sealing, corner insertion, bagging, punching, etc

8. The production of bags, sealing, packaging, and printing dates can be completed in one go

9. The working environment is quiet and the noise is low
