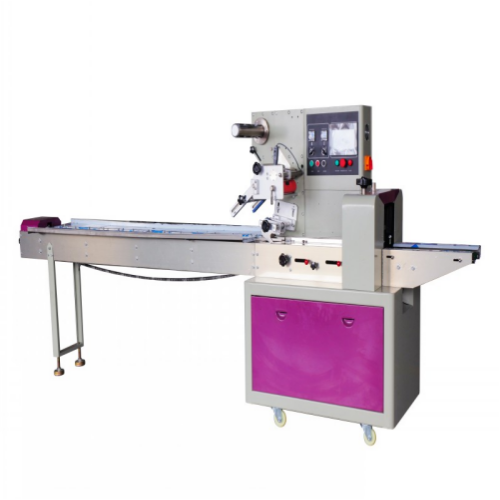

Automatic Horizontal Pillow Pack Machine for Bread Biscuit cake
Technical data :
| Item No. | 250B | 250D | 250E | 250S |
| Roll width | Max. 250mm | Max. 180mm | ||
| Bag length | 65-190mm or 120-280mm | 90-330mm | 45-115mm | 40-90mm |
| Bag width | 30-110mm | 30-80mm | ||
| Material height | Max.40mm | Max.60mm | Max.35mm | |
| Packing speed | 40-230 bags per min | 60-330 bags per min | ||
| Power | 220V 50/60HZ 2.4KW | 220V 50/60HZ 2.8KW | ||
| Machine size | 3770 x 670 x 1450mm | |||
| Weight | 550kg | |||
Features:
Double frequency conversion control , bag length can be set and cut in one step , saving time and films.
Adopt PLC & HMI programming software , easy operating and setting .
Self failure diagnosis , clear failure display .
High sensitivity photocell tracing , input cutting & sealing position digitally , extra accuracy .
PID control temperature independently which is more suitable for packing different materials .
Positioned stop function , without sticking knife or wasting film.
Simple driving system , reliable working , convenient maintenance.
All control is realized through software , easy for function adjustting , technical upgrade .
Application :
This machine is suitable for pack instant noodle , biscuit , bread , pie , snack , medicine , ice cream , chocolate , mooncake , candy , frozen food , tissue , adhesive tape , soap , commodity , hardware parts , cutlery , inflight meal , etc .
Features
Three-axis servo drive system, bag length setting and cutting in one step, saving time and packaging film.
Equipped with PLC and HMI control system, easy operation and quick setup.
Self-diagnosis function with clear fault display.
High-sensitivity photoelectric color mark tracking, digital input of cutting and sealing positions for superior accuracy.
Independent PID temperature control, perfectly adaptable to different packaging materials.
Positioned stop function, no knife sticking and no film waste.
Simplified transmission system, reliable operation and convenient maintenance.
All controls are software-based, easy for function adjustment and technical upgrade.
Applications
This machine is specially designed for packaging various regular solid products, including:
Food: Instant noodles, biscuits, bread, pies, snacks, ice cream, chocolate, mooncakes, candies, frozen foods
Daily Necessities: Tissues, adhesive tapes, soaps, disposable cutlery, hotel amenities
Hardware & Industrial: Hardware parts, small tools, stationery
Medical & Hygiene: Medical supplies, disposable masks, cotton pads
