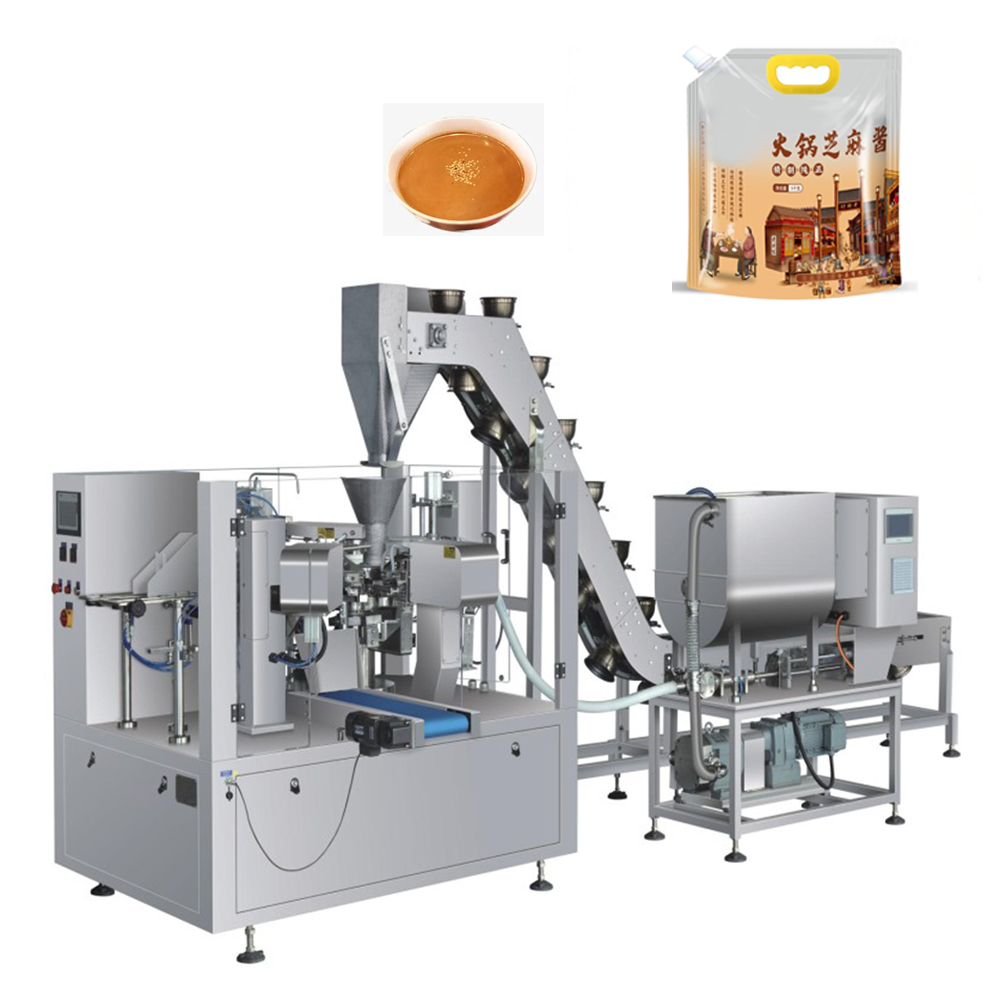

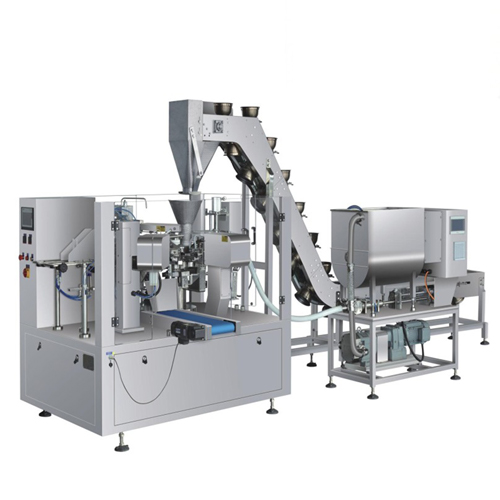

High Speed Automatic Doypack Pouch Sauce liquid packing machine
Model 型号 | 250R |
Packing material 包装材料 | 3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag compound bag, etc |
Filling range 充填范围 | ≤1000g |
Bag size 包装尺寸 | Bag Width : 140-245mm; |
Packing speed 包装速度 | 10-60bag/min(speed is determined by the product filling quantity) |
Averageprecision 平均精度 | ≤ ±1 |
Total power 总功率 | 2.5KW |
Dimensions 外形尺寸 | 1900mm X 1570mm X 1700mm(L*W*H) |
Work flow 工作流程 | giving bag → coding → opening → filling 1 → filling 2 → auxiliary → exhaust →heat sealing → forming and output product |
Applicable scope 使用范围 | Powder type: milk powder, glucose, monosodium glutamate, seasoning, washing powder, chemical materials, fine white sugar, pesticide, fertilizer, etc |

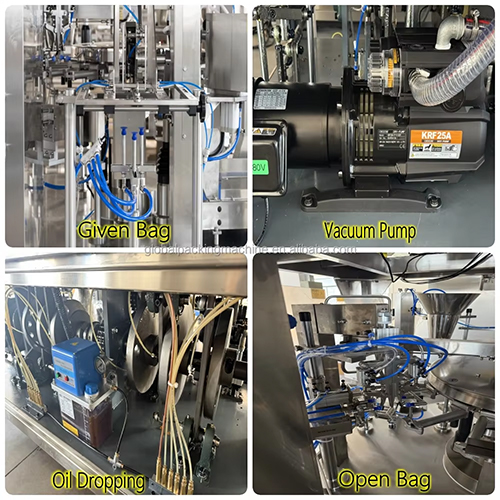

Main standard parts 主要标准部件 | 1.Code printer 2.PLC control system 3.Bag opening device 4.Vibration device 5.Cylinder 6.Electromagnetic valve 7.Temperature controller 8.Vacuum pump 9.Inverter 10.Output system |
Application：

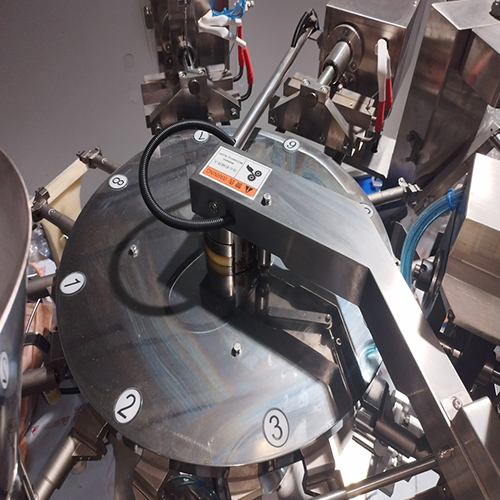

This automatic 8-station liquid pouch packing machine is specially designed for all kinds of liquid and paste products, integrating full-automatic processes from pouch feeding to finished product output. It is easy to operate, no professional experience required, widely used in food, daily chemical and other industries, perfectly suitable for small and medium-sized enterprises and novice operators to realize automated packaging upgrade.
Food Industry (Core Application): Beverages (juice, mineral water, milk, yogurt), condiments (soy sauce, vinegar, cooking oil, oyster sauce, chili sauce), pastes (jam, peanut butter, sesame paste, tomato sauce), honey, edible oil, rice wine, soup, etc.
Daily Chemical Industry: Liquid detergent, laundry detergent, shampoo, shower gel, hand sanitizer, disinfectant, laundry essence, facial cleanser, body lotion, etc.
Compatible Pouches: Stand-up pouches, zipper pouches, three-side seal pouches, four-side seal pouches, spout pouches (suitable for thick liquids/pastes), fully compatible with most pre-made pouches on the market, no need to customize special pouches.
Features：

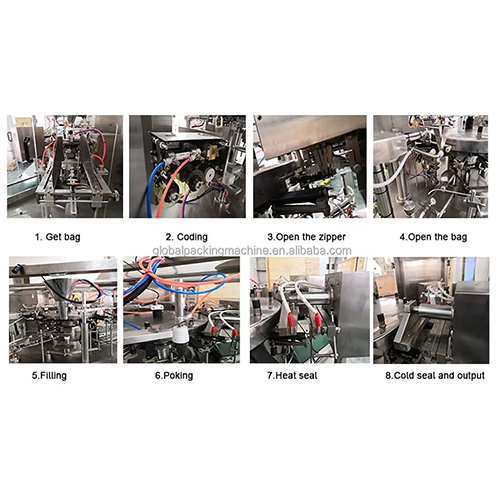

Station 1: Pouch Feeding: Auto picks up pre-made pouches, anti-slip design, stable feeding, only manual loading needed.
Station 2: Coding & Marking: Auto prints production information, clear and durable, parameters adjustable via touch screen.
Station 3: Pouch Opening: Vacuum + high-pressure air opening, anti-unopened design, suitable for various pouch thicknesses.
Station 4: Liquid Filling: High-precision servo metering pump, no dripping/splashing, adjustable filling volume.
Station 5: Auxiliary Station (Optional): Optional vacuum/nitrogen flushing or secondary filling for thick liquids.
Station 6: Pouch Mouth Cleaning: Auto cleans residual liquid, ensures firm sealing and no leakage.
Station 7: Heat Sealing: Constant temperature sealing, adjustable temperature, anti-sticking, firm and leak-proof.

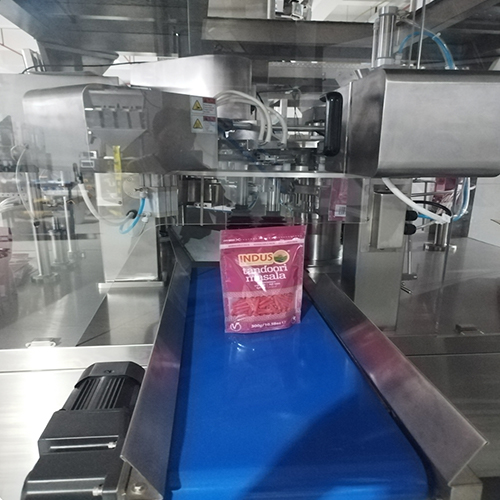

Station 8: Forming & Output: Auto trims edges, discharges finished products, connectable to downstream conveyors.
Core Advantages:
1、Full Automation & Labor Saving.
2、High Filling Accuracy & No Leakage.
3、Wide Compatibility & One Machine for Multiple Uses.
4、Low Failure Rate & Easy Maintenance.
5、Compact Structure & Easy Placement.
6、Cost-Effective & Quick Return on Investment.
