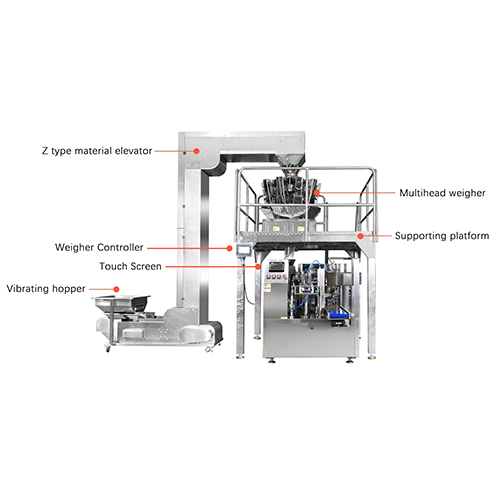

Auto Weighing Doypack Bag for Snack Granular Packing Machine
Model 型号 | 250R |
Packing material 包装材料 | 3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag compound bag, etc |
Filling range 充填范围 | ≤1000g |
Bag size 包装尺寸 | Bag Width : 140-245mm; |
Packing speed 包装速度 | 10-60bag/min(speed is determined by the product filling quantity) |
Averageprecision 平均精度 | ≤ ±1 |
Total power 总功率 | 2.5KW |
Dimensions 外形尺寸 | 1900mm X 1570mm X 1700mm(L*W*H) |
Work flow 工作流程 | giving bag → coding → opening → filling 1 → filling 2 → auxiliary → exhaust →heat sealing → forming and output product |
Applicable scope 使用范围 | Powder type: milk powder, glucose, monosodium glutamate, seasoning, washing powder, chemical materials, fine white sugar, pesticide, fertilizer, etc |
Main standard parts 主要标准部件 | 1.Code printer 2.PLC control system 3.Bag opening device 4.Vibration device 5.Cylinder 6.Electromagnetic valve 7.Temperature controller 8.Vacuum pump 9.Inverter 10.Output system |
Application：
This automatic 8-station granule pouch packing machine is specially designed for all kinds of granular products, widely used in multiple industries, compatible with most pre-made pouches on the market, perfect for small and medium-sized enterprises and novice operators, no professional operation experience required.
Food Industry: Rice, beans, nuts, seeds, candy, snacks, dried fruits, pet food, granule seasoning, popcorn, cereal grains
Agriculture & Feed: Feed granules, fertilizer granules, seed granules, agricultural additives
Compatible Pouches: Stand-up pouches, zipper pouches, three-side seal pouches, four-side seal pouches, spout pouches
Core Advantages:
1、High Efficiency & Labor Saving: 8-station synchronous work (40-60 pouches/min), replaces manual labor and cuts costs.
2、High Filling Accuracy: Special granule dosing system ensures uniform weight, no waste from under/over-filling.
3、Wide Compatibility: One machine fits multiple granular products and pouch types, no extra equipment needed.
4、Low Failure Rate: Sturdy structure, high-quality parts, simple maintenance for long-term use.
5、Compact Structure: Small footprint, easy to place, quick installation and commissioning.
Features：
Adopts rotary 8-station synchronous operation, fixed and smooth workflow, no jamming, high efficiency, clear division of each station:
Giving Bag: Automatic pouch picking and conveying, anti-slip design, stable feeding, only manual pouch loading needed
Coding: Auto print production date, batch number, clear and durable, parameters adjustable via touch screen
Opening: Adjustable air pressure to open pouches stably, fits thin and thick pouches, no pouch damage
Filling: High-precision volumetric granule dosing, accurate filling, no material leakage, adjustable filling weight
Auxiliary: Optional nitrogen flushing/vacuum function to extend product shelf life, flexible configuration
Exhaust: Auto exhaust excess air in pouches, ensure flat and firm sealing effect
Heat Sealing: Constant temperature sealing, firm and leak-proof, anti-sticking design, fits various pouch materials
Forming & Output: Trim pouch edges for neat appearance, auto discharge finished products, connectable to downstream lines
Intuitive Touch Control: Clear interface, one-key operation, no professional skills required.
Food-Grade Safety: 304 stainless steel body, meets food hygiene standards, easy to clean.
Flexible Adjustment: Freely adjust pouch size, filling weight and running speed; quick product changeover.
