Station 1 : Pouch feeding
Feed many pouches or bags in the bag magazine, our main bag magazine can be adjusted by pouch sizes, you can feed pouches very easily when
it feeding, there are a mechanical arm with Servo Motor will take bag up and then transmit it to the mechanical gripper on the clamp turntable.

Station 2 : Date Printing or Reserved
According to the actual production needs of the customer, this workstation can be equipped with coding machine to print the packaging date and batch number

Station 3 : Pouch Opening, zipper opening device
At the same time as the opening suction cup sucks open the bag opening, the upper spray pipe sprays air into the packaging bag. The bag is then opened and
transported to the next workstation by the bag spreading plate, and the presence of the packaging bag or whether the bag opening is detected is completed; If there
is no packaging bag or the bag opening is not opened, the filling station will not fill the material and will not enter the vacuum chamber.

Station 4 : Filling material workstation (Filling)
Insert the filling material hopper into the packaging bag, and the bag spreading piece is completed and returned to the original workstation; Fill the material into the
packaging bag. (Depending on the material, there may be differences in the filling system configuration of this workstation) Complete the fully automatic or semi-automatic
placement and filling of materials.

Station 5: Material Pocking or liquid filling station (Filling)
Depending on the different conditions of the materials, different devices can be selected and installed at this workstation to perform secondary treatment on the
materials inside the packaging bags

Station 6 : Pouch Straightenning, pouch flattening
After cleaning, the packaging bag is straightened for the first time to avoid wrinkles at the bag mouthand ensure a smooth and beautiful sealing of the packaging bag.

Station 7 : Preheating and sealing station(Heating)
he packaging bag filled with materials enters this workstation

Machine Features

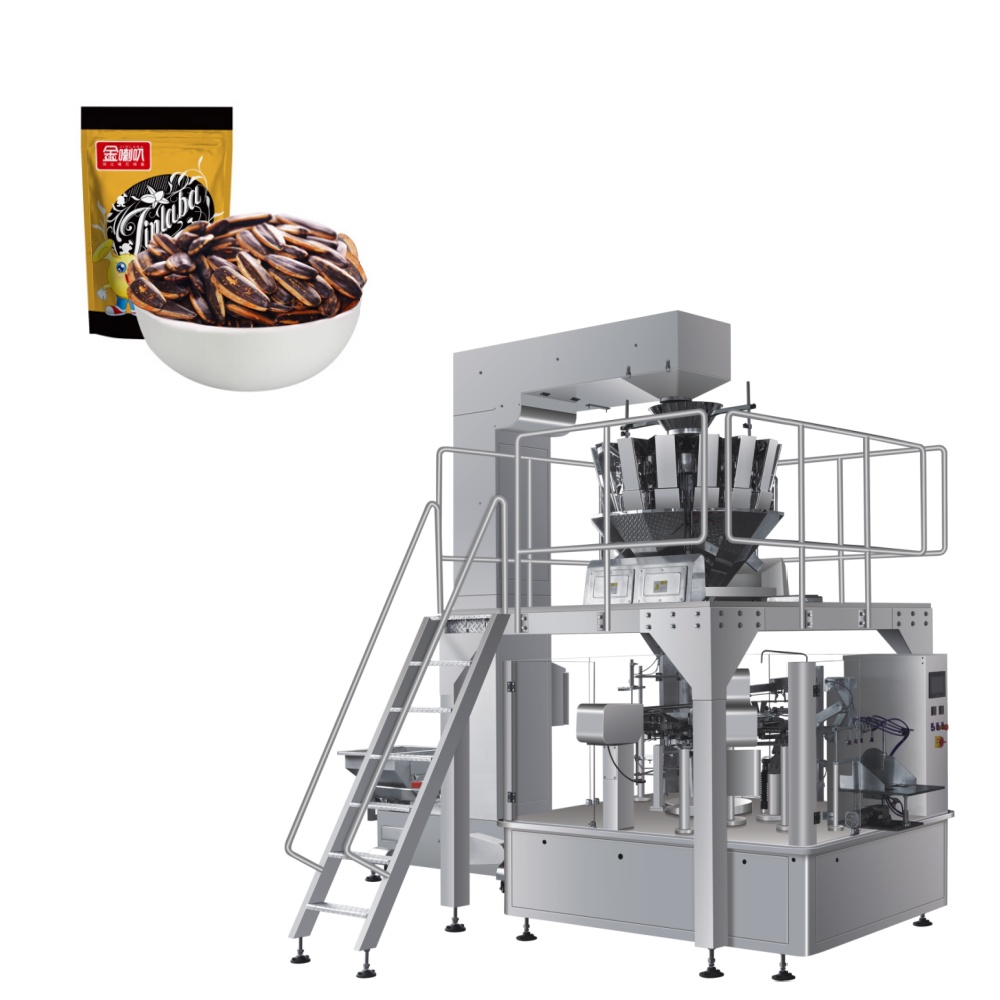

1.The packaging system consists of an eight station bag packaging machine, a support platform, a combination scale, and a lifting machine

2. Fast packaging speed, stable performance, and high yield of finished products

3. There is a waterproof system for easier cleaning, using a color touch screen display and simple operation

4. Innovatively solve various product packaging problems at a reasonable cost

5. The packaging machine uses pre made bags with perfect patterns, good sealing quality, and enhances product quality
