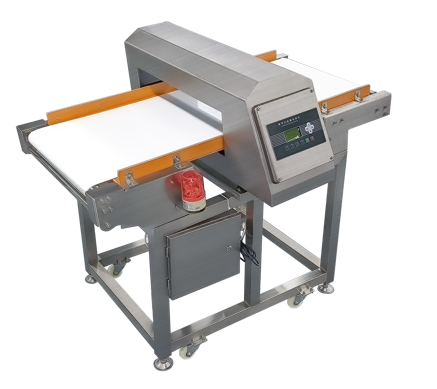

M40 3 0 Metal Detector
name | Digital Metal Detector |
model | M40 3 0 |
Effective detection hole width | 400mm |
Effective detection hole height | 3 00mm |
Conveying capacity | 10kg/time |
Empty machine detection accuracy | Fe≥ 2.0 mm, Non-Fe≥ 3.0mm , SUS≥ 3.5mm |
Maximum conveyor speed | 30m/min |
Transmission direction | From left to right (facing the screen) |
Conveyor belt height | 750±50mm (can be customized according to customer requirements) |
Elimination method | Default alarm shutdown, optional rejection |
Conveyor belt material | Food grade PU belt |
Protection level | IP65 |
Display and operation | LED LCD flat button input |
Power Requirements | AC220V 50-60Hz |
Main material | All stainless steel (SUS304) |
Remark | The metals that can be detected depend on the type of inspected object (size, shape, conductivity, etc.), the type of metal (material, shape, etc.) and the installation environment. The specific conditions are subject to actual testing and application . |
Features:
1. It has the function of automatically identifying product characteristics, storing 12 product information, automatic phase tracking, and signal processing is automatically calculated by the digital chip, which can quickly and automatically learn to obtain the best detection phase.
2. It adopts advanced digital signal processing technology and has the function of automatic learning of product effects. For example, sugar, salt and meat products will produce metal-like signals to the metal detector, which will affect the detection effect. This function reduces the product effect and achieves the best effect.
3. Digital sensitivity control mode and multiple manual setting functions; a variety of specifications are available to meet different material detection sensitivity requirements.
4. Designed in accordance with European and American safety standards, the whole machine design complies with the requirements of food machinery and is suitable for connecting to assembly line inspection operations.
5. The whole machine frame is made of 304 stainless steel laser cutting and welding technology and wire drawing process.
6. The belt is made of food-grade PU belt and has passed FDA food-grade certification, which greatly improves the belt's ability to resist pollution and dirt.
7. The probe of the metal detector is filled with epoxy resin to ensure the stability and service life of the equipment.
8. The mechanical structure is simple and easy to disassemble, clean and maintain.
Product Application:
1. It is used in various automated assembly lines and logistics transportation systems to identify metal foreign bodies (such as iron, stainless steel, aluminum, etc.) mixed in during the production process of food, medicine, cosmetics, textiles, etc. Even tiny metals embedded in the products can be detected and identified.
2. In addition, it can directly replace manual inspection to improve production efficiency and product consistency and reliability.
