Auto Liquid unit for Oil Butter Milk Cup Filling Capping Machine

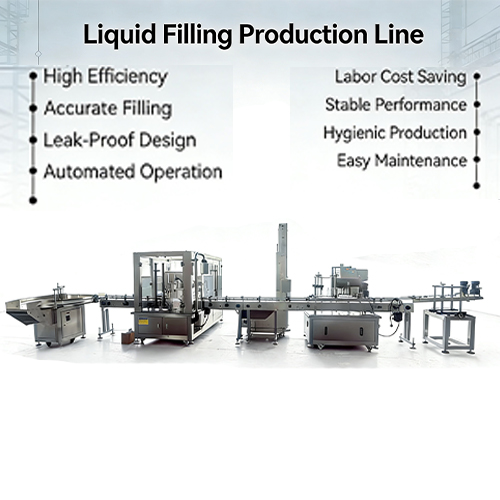

This automatic liquid filling line integrates bottle unscrambling, filling, capping, labeling and output into one seamless process. Featuring high-speed, hygienic, low-failure operation with food-grade stainless steel construction, it is user-friendly, easy to maintain, and ideal for large-batch liquid production with high cost-effectiveness.

Description Package Information Inquiry

料仓容积 Hopper volume	30L	50L	80L
包装精度 Packing accuracy	1-1000g≤±0.5%	±0.5%	1000g-5kg＜±0.5-1% 5-20kg＜±1%
充填速度 Filling speed	1-50次/分钟	10-40次/分钟	1-40次/分钟
电源 Powder	单项220	380/220	三相/220-415
整机功率 Total power	4KW	5KW	4.95KW
控制电器	Delta PLC+Delta Touchable Screen
整机重量 The whole weight	200KG	≤350KG	≈400KG

Application:

This fully automatic liquid filling production line is designed for high-efficiency, large-scale filling of various liquid products.

It is widely used in industries such as food,beverage,cosmetics ang daily chemicals.

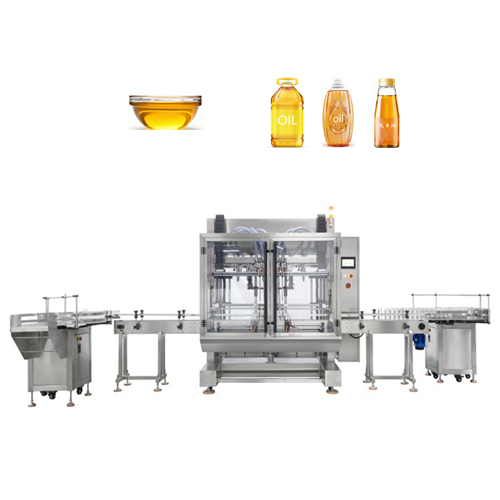

It is suitable for filling liquids of different viscosities, including water-based liquids, beverages, sauces, edible oils, syrups and detergents,

in bottles, cans, jars, and other standard containers.

Core Advantages:

High-speed, ideal for large-batch production.
Fully automated line: unscrambling, filling, capping, labeling & output.
Stable, low failure rate, long service life.
Food-grade stainless steel, hygienic and easy to clean.
User-friendly interface, easy to operate & maintain.
Cost-effective with high ROI.

Features：

1、Fully automated workflow: bottle feeding → filling → capping → labeling → output

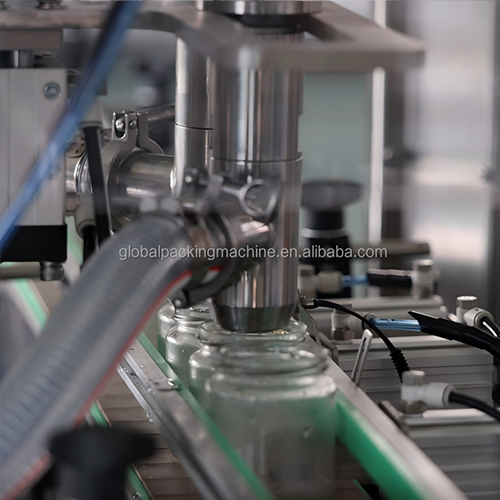

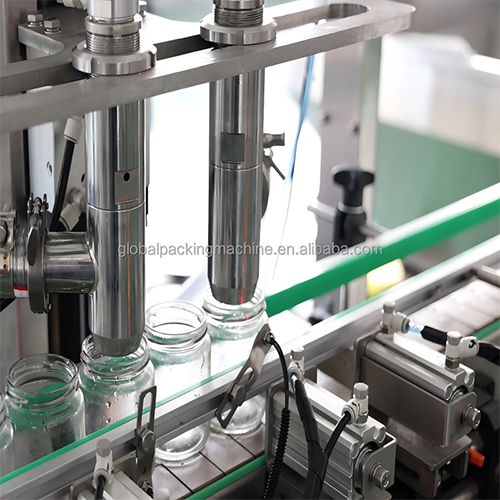

2、High-precision filling with leak-proof, anti-drip nozzles
3、304/316 stainless steel contact parts for hygiene
4、PLC + touch screen control, easy parameter adjustment
5、Modular design, customizable for different containers and speeds
